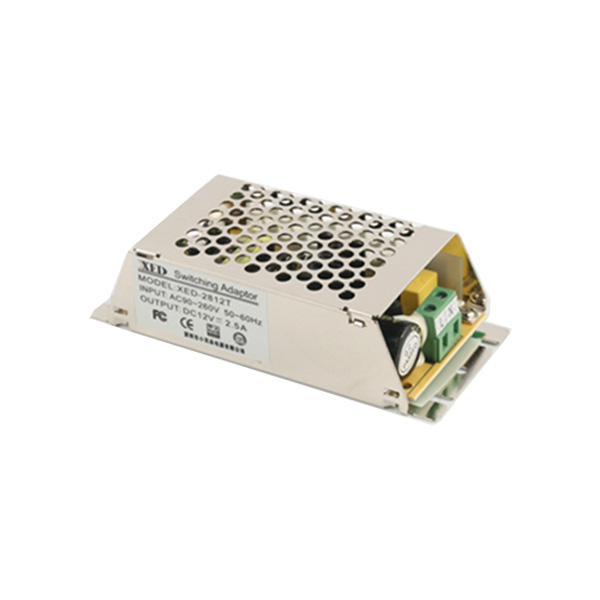

Wide range AC 100V-240V 50/60Hz Input / 12Vdc 2.5A 30Watt Output Switch Mode Open Frame Power Supply
| Model No. | XED-2812T | |
| OUTPUT | DC voltage | 12V |
| Rated current | 2.5A | |
| Current range | 2.8-4A | |
| Rated power | 30W | |
| Ripple & Noise | 120mv | |
| Voltage adjustment range | 11.4-12.6V | |
| Voltage Accuracy | ±5% | |
| Linear adjustment rate | ±1% | |
| Load adjustment rate | ±5% | |
| INPUT | Voltage range | 90-260V |
| Frequency range | 50/60Hz | |
| Efficiency | 80% | |
| Surge current | 4kV | |
| Leakage current | 0.25mA | |
| PROTECTION | Over load | 105%-150% |
| Over voltage | 18V | |
| ENVIRONMENT | Working temperature | 0-40℃ |
| Storage temperature and humidity | -40℃~+70℃ | |
| Safety regulation and electromagnetic compatibility | Safety regulations | |
| Insulation impedance | ||
| Withstand voltage | 3kv | |
| Electromagnetic interference | ||
| Others | MTBF | 50000Hours |
| Dimensions | 115*50*31MM | |
