• Desktop Power Adapter

    .Wide voltage compatibility
    .100% full-load burn in testing
    .Fixed cables & 2pins & 3 pins cable design
    .Safe & stable circuit, low working temperature

desktop power adapter

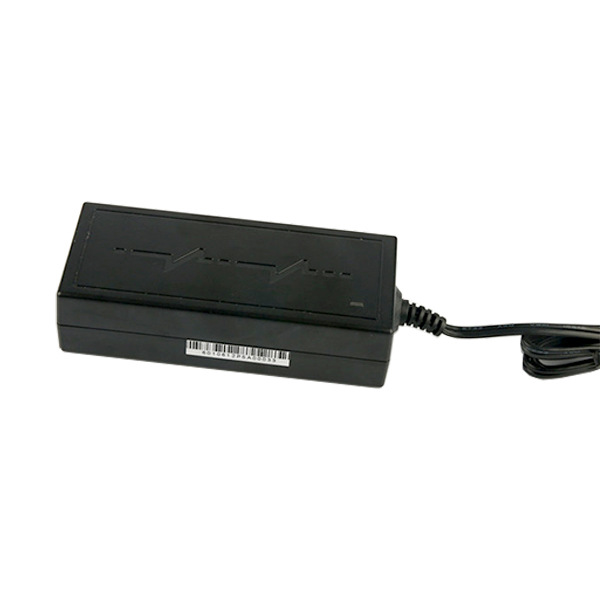

Desktop Power Adapter

Wide voltage range AC 100-240V 50/60Hz Input / 60Watt Output

.Parameters:DC 12V 5A/DC15V 4A/DC19V 3.15A/ DC24V 2.5A/ DC48V 1.25A/ DC48V 1.25A

.Certification:CE, UL, FCC, PSE ,TUV, RoHS Safety Certificates Approved.

.Warranty: 2years

.Full protection: OVP (Over-voltage protection),OCP (Over-current protection) ,SCP (Short-circuit protection) ,OLP (Over-load protection)

.Application:CCTV Security Cameras/ CCTV Security Cameras / DVR NVR Surveillance System/ Night Vision IR Camera Illuminator /Face Recognition/ And other Small Power Devices









Specifications

Model No. XED-RZ120500P XED-RZ150400P XED-RZ190315P XED-RZ240250P XED-RZ480125P
OUTPUT DC voltage 12V 15V 19V 24V 48V
Rated current 5A 4A 3.15A 2.5A 1.25A
Current range 5.5~8A 4.5~6A 3.5~4.5A 2.8~3.5A 1.5~1.8A
Rated power 60W 60W 60W 60W 60W
Ripple & Noise <120mV <120mV <120mV <120mV <120mV
Voltage adjustment  range 11.4-12.6V 14.25-15.75V 18-20V 22.8~25.2V 45.6~50.4V
Voltage Accuracy ±5% ±5% ±5% ±5% ±5%
Linear adjustment rate ±1% ±1% ±1% ±1% ±1%
Load adjustment rate ±5% ±5% ±5% ±5% ±5%
INPUT Voltage range 100-240V 100-240V 100-240V 100-240V 100-240V
AC Plug 3 pin 3 pin 3 pin 3 pin 3 pin
Frequency range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Efficiency 86% 86% 85% 85% 85%
Surge current 2KV 2KV 2KV 2KV 2KV
Leakage current 0.25mA 0.25mA 0.25mA 0.25mA 0.25mA
PROTECTION Over load 105%-150% 105%-150% 105%-150% 105%-150% 105%-150%
Over voltage 18V 22.5V 28.5V 36V 72V
ENVIRONMENT Working temperature 0-40℃ 0-40℃ 0-40℃ 0-40℃ 0-40℃
Storage temperature and humidity -40℃~+70℃ -40℃~+70℃ -40℃~+70℃ -40℃~+70℃ -40℃~+70℃
Safety regulation and electromagnetic compatibility Safety regulations EN62368-1:2014 EN62368-1:2014 EN62368-1:2014 EN62368-1:2014 EN62368-1:2014
Insulation impedance >100MΩ >100MΩ >100MΩ >100MΩ >100MΩ
Withstand voltage 3KV 3KV 3KV 3KV 3KV
Electromagnetic interference EN55032; EN55035 EN55032; EN55035 EN55032; EN55035 EN55032; EN55035 EN55032; EN55035
Others MTBF 50000Hours 50000Hours 50000Hours 50000Hours 50000Hours
Dimensions 131*56*33 mm 131*56*33 mm 131*56*33 mm 131*56*33 mm 131*56*33 mm
