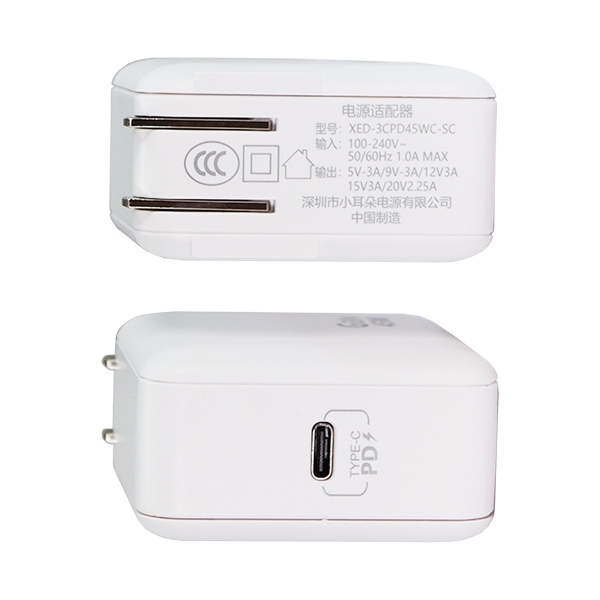

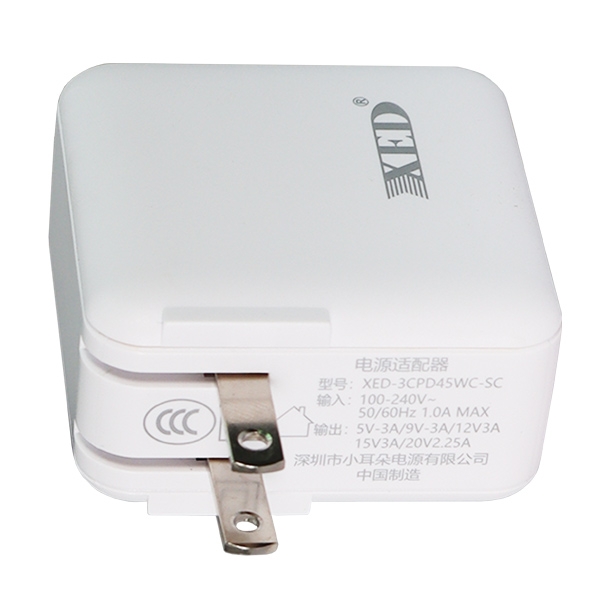

This Gan PD charger is with high efficiency design, 5 outputs for different options, it will bring you fast charge, saving time and cost.
| Model No. | XED-PD45W | |
| OUTPUT | DC output | 5V-3A/9V-3A/12V 3A/15V 3A/20V 2.25A |
| Charging protocol | Type-c PD | |
| Rated power | 45W | |
| Ripple & Noise | ≤250mv; ≤40dB | |
| Voltage adjustment range | ±5% | |
| Voltage Accuracy | ±5% | |
| Linear adjustment rate | ±5% | |
| Load adjustment rate | ±5% | |
| INPUT | Voltage range | 100-240V~ |
| AC plug type | UL,China | |
| Frequency range | 50/60Hz | |
| Efficiency | (Vout=5V，Pout=15W):>81.39%; (Vout=9V，Pout=27W): 86.62% (Vout=12V，Pout=36W):>87.40% (Vout=15V，Pout=45W):>87.73% (Vout=20V，Pout=45W):>87.73% |
|
| Surge current | ||
| Leakage current | 0.25mA Max. at 264Vac / 50Hz | |
| PROTECTION | Over load | 105%-160% |
| Over voltage | Output voltage*1.05 | |
| ENVIRONMENT | Working temperature | -20℃+40℃ |
| Storage temperature and humidity | -40℃ to +70℃ 5%RH to 95%RH | |
| Safety regulation and electromagnetic compatibility | Safety regulations | FCC, EN55032, GB4943, GB8898, |
| Insulation impedance | 100MΩ | |
| Withstand voltage | 3KV | |
| Electromagnetic interference | EN55032 | |
| Others | Color | White |
| Dimensions | 57.65*57.65*31.5mm | |
