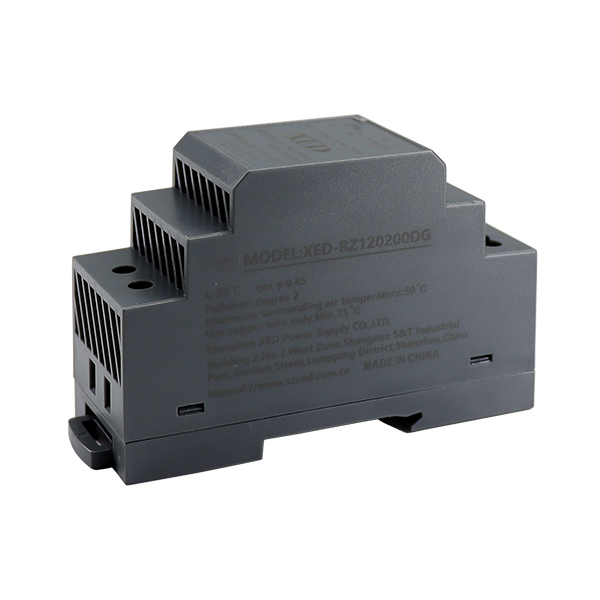

Wide range AC 100V-240V 50/60Hz Input / 12Vdc 2.5A 30Watt/15Vdc 2.0A 30Watt Output Din Rail Power Supply
| Model No. | XED-RZ120250DG | ||
| OUTPUT | DC voltage | 12V | 15V |
| Rated current | 2.5A | 2A | |
| Current range | 2.7-3.5A | 2.2-3.5A | |
| Rated power | 30W | 30W | |
| Ripple & Noise | 120mV | 120mV | |
| Voltage adjustment range | 9.5-16V | 9.5-16V | |
| Voltage Accuracy | ±5% | ±5% | |
| Linear adjustment rate | ±1% | ±1% | |
| Load adjustment rate | ±5% | ±5% | |
| INPUT | Voltage range | 100-240V | 100-240V |
| Frequency range | 50/60Hz | 50/60Hz | |
| Efficiency | 83% | 83% | |
| Surge current | 2KV | 2KV | |
| Leakage current | 0.25mA | 0.25mA | |
| PROTECTION | Over load | 105%-150% | 105%-150% |
| Over voltage | 18V | 22.5V | |
| ENVIRONMENT | Working temperature | 0-40℃ | 0-40℃ |
| Storage temperature and humidity | -40℃~+70℃ | -40℃~+70℃ | |
| Safety regulation and electromagnetic compatibility | Safety regulations | ||
| Insulation impedance | |||
| Withstand voltage | 3KV | 3KV | |
| Electromagnetic interference | |||
| Others | MTBF | 5000Hours | 5000Hours |
| Dimensions | 90*35*58.4mm | 90*35*58.4mm | |
