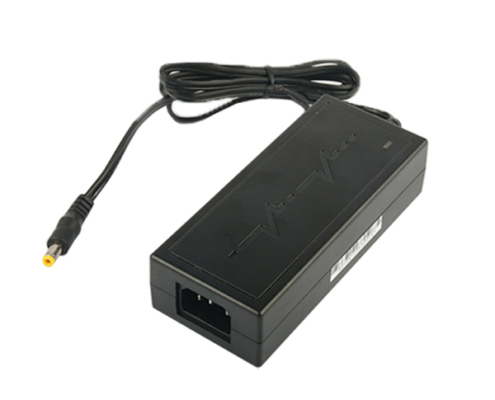

This AC to DC 12V power supply adapter is widely used for various application, it’s designed with high quality and stable performance below features for your quick checking:
| Model No. | XED-4013B | XED-4013P | XED-4013S | |
| OUTPUT | DC voltage | 12V | 12V | 12V |
| Rated current | 4A | 4A | 4A | |
| Current range | 4.5~6A | 4.5~6A | 4.5~6A | |
| Rated power | 48W | 48W | 48W | |
| Ripple & Noise | <120mV | <120mV | <120mV | |
| Voltage adjustment range | 11.4-12.6V | 11.4-12.6V | 11.4-12.6V | |
| Voltage Accuracy | ±5% | ±5% | ±5% | |
| Linear adjustment rate | ±1% | ±1% | ±1% | |
| Load adjustment rate | ±5% | ±5% | ±5% | |
| INPUT | Voltage range | 100-240V | 100-240V | 100-240V |
| AC Plug | 2pin | 3 pin | optional | |
| Frequency range | 50/60Hz | 50/60Hz | 50/60Hz | |
| Efficiency | 83% | 83% | 83% | |
| Surge current | 2KV | 2KV | 2KV | |
| Leakage current | 0.25mA | 0.25mA | 0.25mA | |
| PROTECTION | Over load | 105%-150% | 105%-150% | 105%-150% |
| Over voltage | 18V | 18V | 18V | |
| ENVIRONMENT | Working temperature | 0-40℃ | 0-40℃ | 0-40℃ |
| Storage temperature and humidity | -40℃~+70℃ | -40℃~+70℃ | -40℃~+70℃ | |
| Safety regulation and electromagnetic compatibility | Safety regulations | NA | NA | NA |
| Insulation impedance | >100MΩ | >100MΩ | >100MΩ | |
| Withstand voltage | 3KV | 3KV | 3KV | |
| Electromagnetic interference | NA | NA | NA | |
| Others | MTBF | 50000Hours | 50000Hours | 50000Hours |
| Dimensions | 131*56*33 mm | 131*56*33 mm | 131*56*33 mm | |
