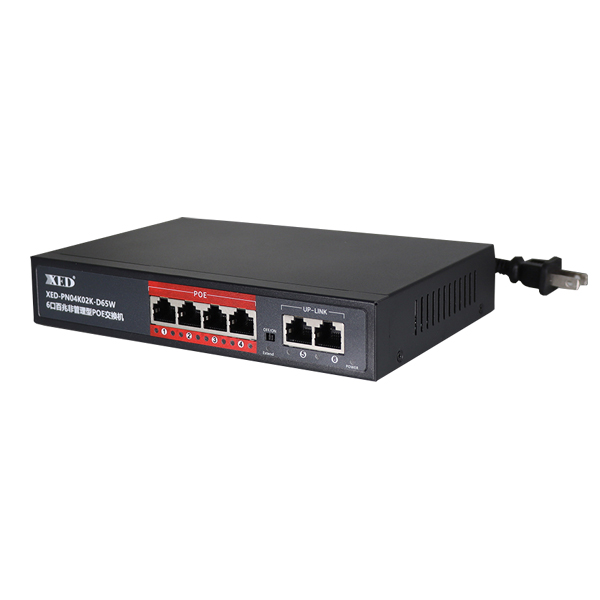

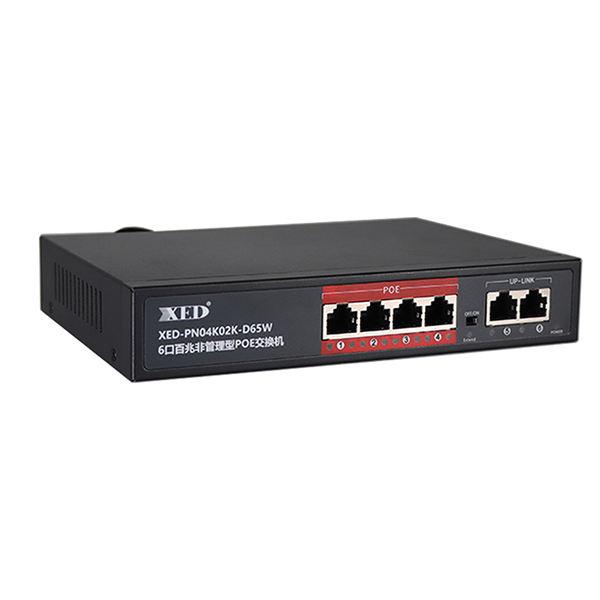

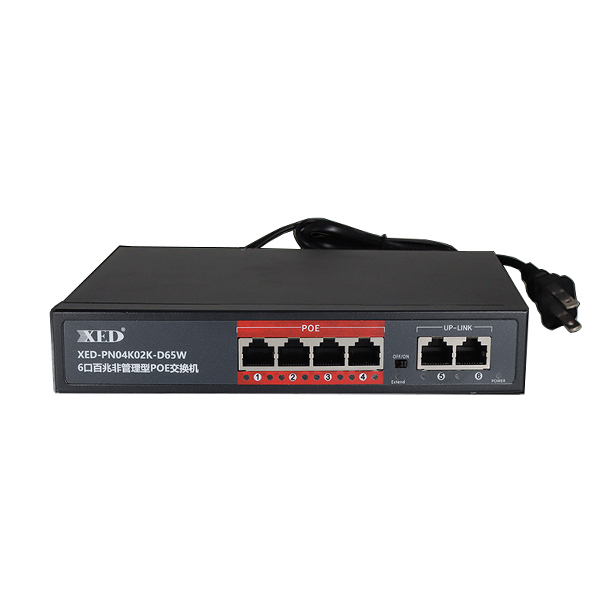

XED-PN04K02K-D65W
100M non-management POE switch
- 4*100Mbps self-adaptive network ports
- 2*100Mbps self-adaptive cascade ports
- 1 multiplexed firber optic port.
- Built-in power supply,total power is up to 65W
- Single voltage input:AC 175V-240V
Specifications
| Model | XED-PN04K02K-D65W 100M non-management POE switch |
| Fixed Ports | 4*100Mbps self-adaptive network ports |
| 2*100Mbps self-adaptive cascade ports | |
| Power-supply standards | IEEE802.3af/at |
| Max output power of a single port | 30W |
| POE maximum output power | 65W |
| POE function port | Port1- Port4 |
| POE protection | Over current protection |
| Over voltage protection | |
| Short-circuit protection | |
| POE(Other functions) | Boot order（Avoid excessive starting current） |
| High power PD soft start | |
| POE | 1/2(+)，3/6(-)； The four core power supply |
| Forwarding mode | Full-line speed store-and-forward |
| Forwarding rate | 10M：14880pps/port |
| 100M：148809pps/port | |
| Backplane bandwidth | 1.6Gbps（Non-blocking） |
| MAC Address Table | 2K |
| Support automatic updates, double-way learning | |
| LED Indicators | Power: Power light |
| Indicates the power status of the switch | |
| Extend: When the function switch dials Extend mode, the mode lights up and the mode is on | |
| LINK/ACT: The connection is normal when the port indicator is on. The port indicator flashes means the data is in transit. |
|
| Supported protocol standards | IEEE 802.3af, Ethernet power supply POE standard |
| IEEE 802.3at, Power supply over Ethernet POE+ standard | |
| IEEE 802.3, Ethernet media access control | |
| IEEE802.3i 10Base-T Ethernet | |
| IEEE 802.3u, 100Base-TX Fast Ethernet standard | |
| IEEE 802.3x, Full-duplex Ethernet data link laminar flow control | |
| Guard loop | Support loop protection, Real-time monitoring, Intelligent blocking, automatic recovery |
| Network extension | Support network Extension, downlink ports are isolated from each other, can communicate with the uplink port |
| Port flow control | Support half duplex based back pressure control |
| Support full duplex based on PAUSE frames | |
| Storm suppression | All ports support broadcast storm suppression based on packet forwarding rate |
| Physical medium | 10Base-T: 2 Pair 3 or higher unshielded twisted pair EIA/TIA-568 standard（≤ 250M） |
| 100Base-TX: 2 pairs or 4 pairs of class 5 or more unshielded twisted pair EIA/TIA-568 standard（≤100M） | |
| Cable sequence | The auto-Mdix function is supported, automatic identification of straight-through cables and crossover cables |
| Negotiation mode | Ports support automatic negotiation（Auto-negotiation transmission rate and duplex mode） |
| PHY detection | Support network cable connectivity detection |
| Working Temperature | -0~40°C |
| Storage temperature | -40~70°C |
| Working humidity | 10%～90% No condensing |
| Storage humidity | 5%～90% No condensing |
| Weight | Net weight（without packaging）：0.6Kg≤ |
| Total weight：2Kg≤ | |
| Input current | 180-240V ~ 50-60Hz/ 1A Max |
| Protection | Port lightning protection: 4KV 8/20μs |
| Protection: IP30 | |
| Sizes (L×W×H) | 190mm×130mm×34mm |
| Installation | Desktop |
| Wall mounted | |
| Storage Precautions | The warehouse shall be clean, ventilated, free of corrosive gases, inflammable, explosive and other corrosive chemicals.
Keep away from heat source and strong mechanical vibration |
| Warranty | Two Years |
