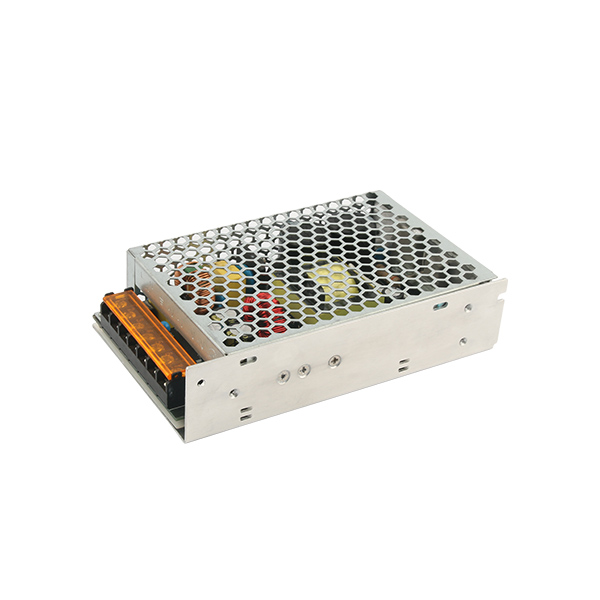

AC 100V-240V 50/60Hz Input / 12Vdc 10A 120W Output Open Frame Switch Mode Power Supply
| Model No. | XED-10A12VWT | |
| OUTPUT | DC voltage | 12V |
| Rated current | 10A | |
| Current range | 11-16.5A | |
| Rated power | 120W | |
| Ripple & Noise | 120mv | |
| Voltage adjustment range | 11.4-13.9V | |
| Voltage Accuracy | ±5% | |
| Linear adjustment rate | ±1% | |
| Load adjustment rate | ±5% | |
| INPUT | Voltage range | 200-240V |
| Frequency range | 50/60Hz | |
| Efficiency | 82% | |
| Surge current | 4kV | |
| Leakage current | 0.25mA | |
| PROTECTION | Over load | 105%-150% |
| Over voltage | 18V | |
| ENVIRONMENT | Working temperature | 0-40℃ |
| Storage temperature and humidity | -40℃~+70℃ | |
| Safety regulation and electromagnetic compatibility | Safety regulations | |
| Insulation impedance | ||
| Withstand voltage | 1.5kv | |
| Electromagnetic interference | ||
| Others | MTBF | 50000Hours |
| Dimensions | 159*97.5*38MM | |
