• IP67 Waterproof Power Adapter

    . Short Circuit / over load/over voltage protection
    . IP67 Waterproof Performance
    . 100% full load aging test
    . Outdoor & Indoor use
    . Wide range AC input

waterproof power adapter 24w
waterproof power adapter 24w

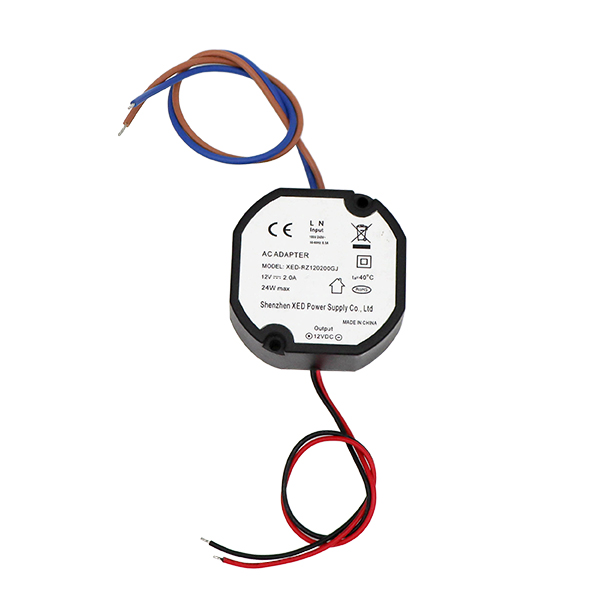

IP67 Waterproof Power Adapter

This AC to DC IP67 12V 2.0A / 24V 1A  24W waterproof power supply adapter was widely used for various application, it’s designed with high quality performance based on CE standard, below features for your quick checking:

  • IP 67 waterproof AB rubber material for good heat dissipation
  • Wide voltage range AC 100-240V
  • Parameters: DC12V 2.0A 24W；DC24V 1A  24W
  • Options: With DC plug (5.5*2.1mm) or DC wires
  • Slim size for junction box , strong energy, only 51-82g
  • Good for indoor & outdoor use
  • ODM & OEM service available
  • Full protection: OVP (Over-voltage protection),OCP (Over-current protection) ,SCP (Short-circuit protection) ,OLP (Over-load protection)

Specifications

Model No. XED-RZ120200GJ XED-RZ240100GJ
OUTPUT DC voltage 12V 24V
Rated current 2A 1A
Current range 2.2-2.8A 1.2-2A
Rated power 24W 24W
Ripple & Noise <120mV <120mV
Voltage adjustment  range 11.4-12.6V 22.8-25.2V
Voltage Accuracy ±5% ±5%
Linear adjustment rate ±1% ±1%
Load adjustment rate ±5% ±5%
INPUT Voltage range 100-240V 100-240V
Frequency range 50/60Hz 50/60Hz
Efficiency 85% 85%
Surge current 2KV 2KV
Leakage current 0.25mA 0.25mA
PROTECTION Over load 105%-150% 105%-150%
Over voltage 18V 28V
ENVIRONMENT Working temperature 0-40℃ 0-40℃
Storage temperature and humidity -40℃~+70℃ -40℃~+70℃
Safety regulation and electromagnetic compatibility Safety regulations EN62368-1:2014 EN62368-1:2014
Insulation impedance >100MΩ >100MΩ
Withstand voltage 3KV 3KV
Electromagnetic interference EN55032; EN55035 EN55032; EN55035
Others MTBF 50000Hours 50000Hours
Dimensions 60*61.5*30mm 60*61.5*30mm
